This application of the editor checks through the CNC g-code file and determines the extent of travel in both positive and negative directions for the X, Y and Z axes.

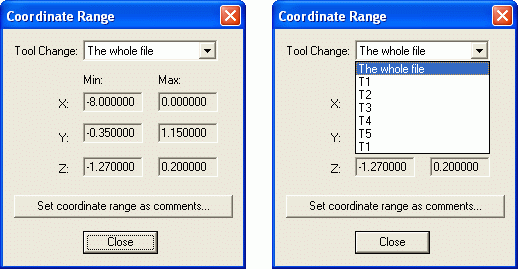

By using the drop down window, the user can check the machining work envelope for the whole CNC file, or for individual tools. An option enables the user to paste this information into a computer numerical control program as a note.
