Grid Pattern Calculations


spacer This dialog of the CNC editor enables the user to calculate the X and Y coordinates for holes arranged equally spaced as a grid, then copy those coordinates to the clipboard ready to paste into your CNC program.

Optionally, you can insert a line of text (such as a subroutine call) between each coordinate line.

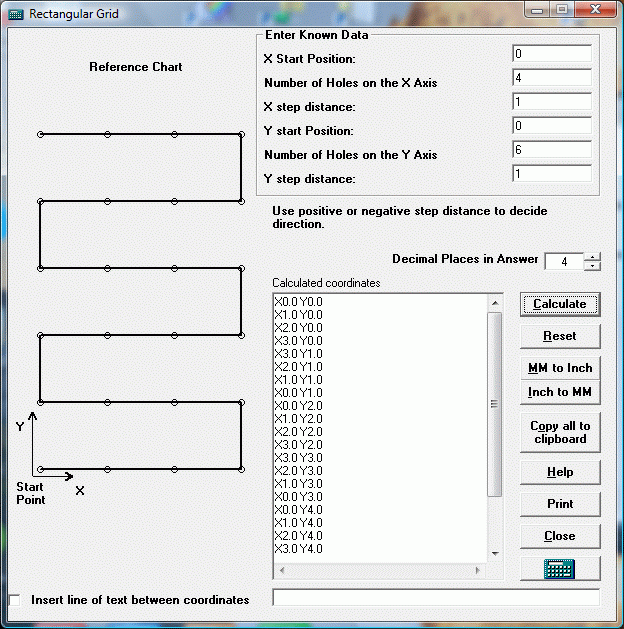

Grid pattern calculations with EditCNC
Machinist's Calculator is also available as stand alone software. For more information, click here.
