EditCNC

Scale and Mirror


Scale allows the user to multiply all incidences of one or more g-code addresses by a specific factor. An ideal use for this command is to convert programs from inch to metric, and vise versa.
Mirror changes all incidences of one or more g code values from positive to negative, and vise versa. An option to change arc cutting direction and tool radius compensation direction is provided.
Both of the above commands may by processed throughout all of the file, or a specified part of the file.

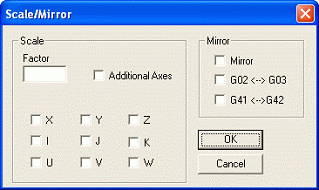

EditCNC Scale and Mirror dialog
System requirements:
Any computer with Windows 98, ME, 2000 XP, NT, Vista, Win7, 8 or10 (32 or 64 bit).
ConnectCNC requires at least one serial COM port, or USB/RS232c port converter.
